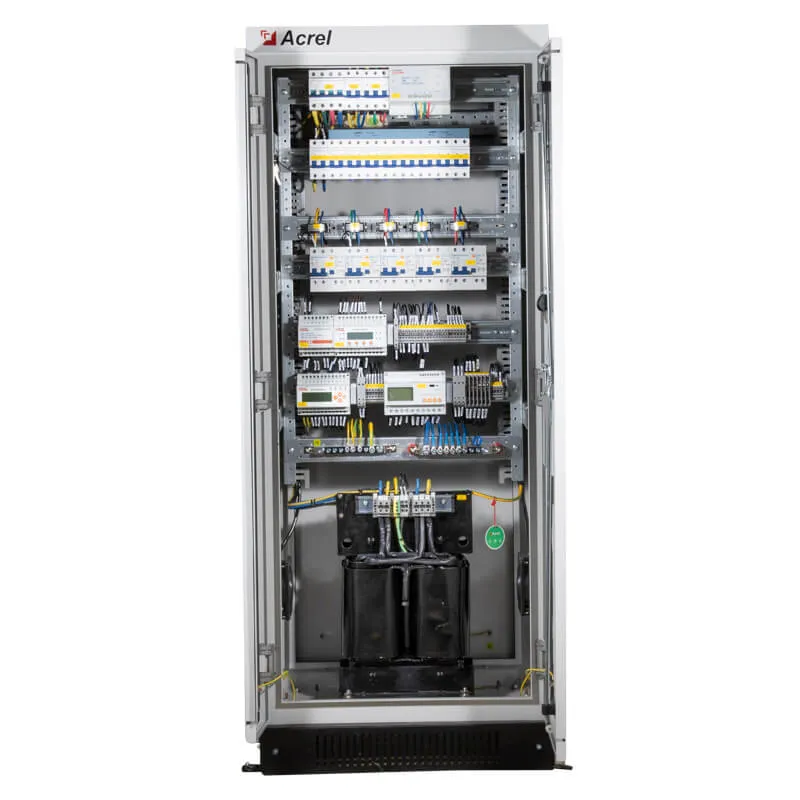

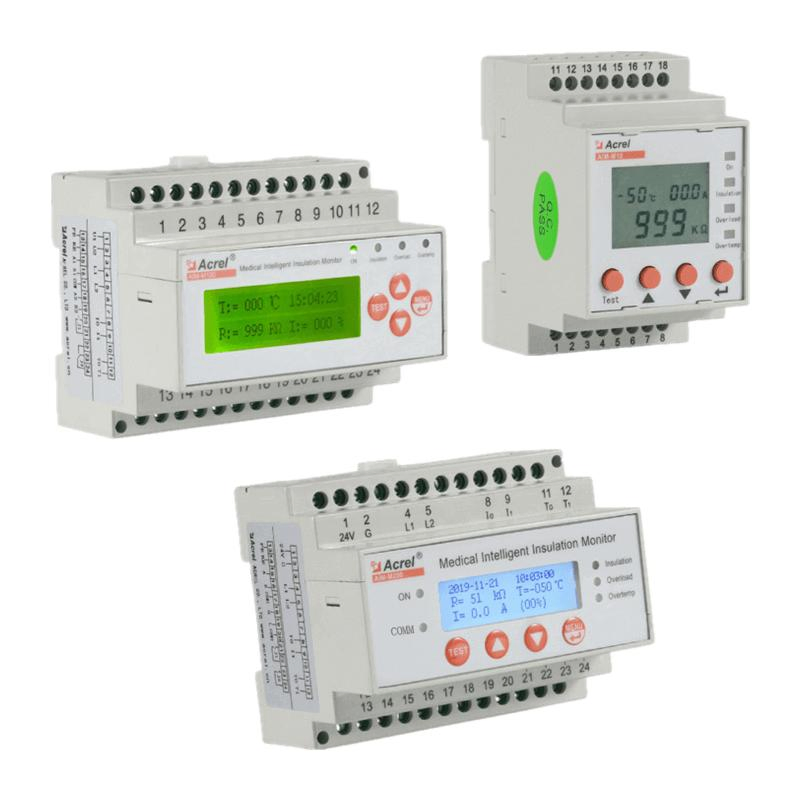

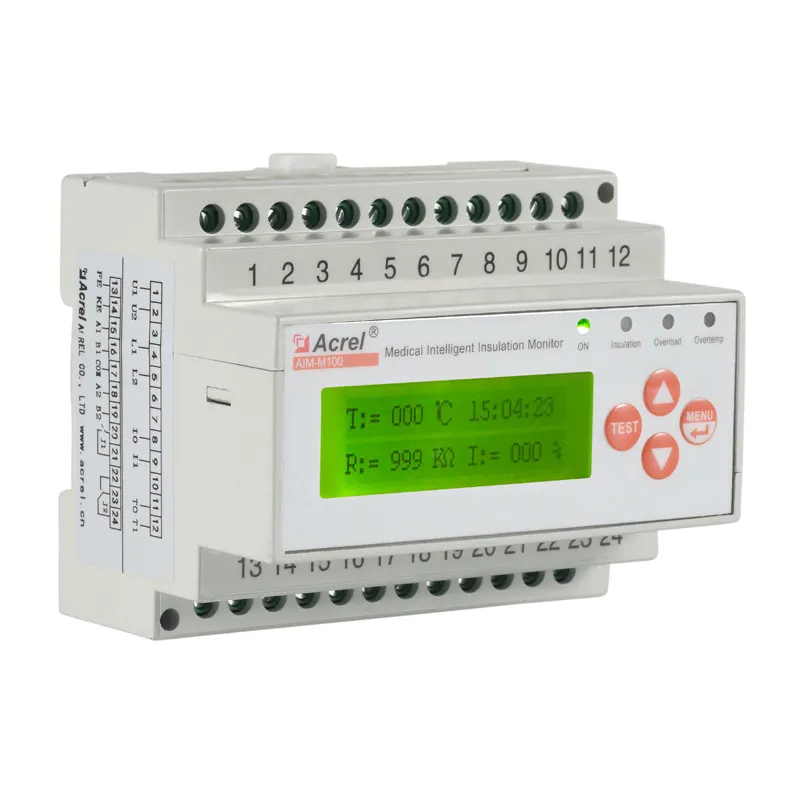

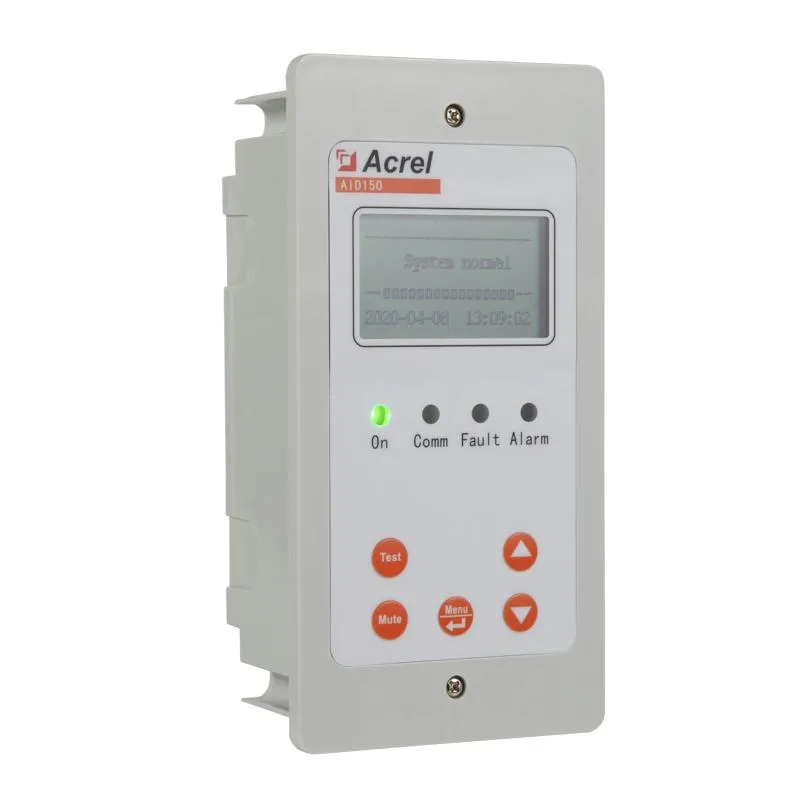

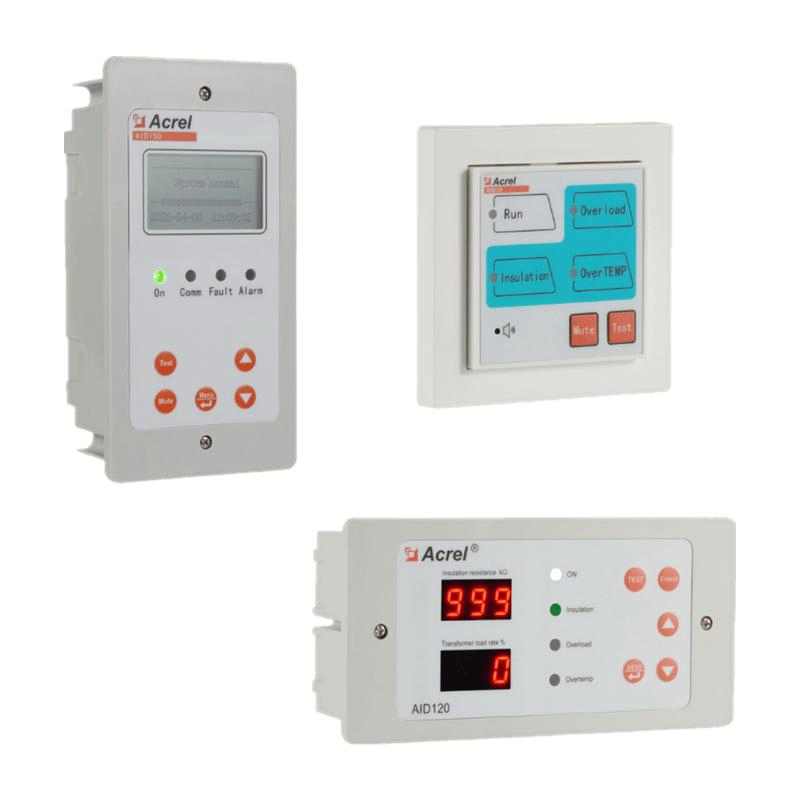

The medical isolation power supply cabinet is a power distribution cabinet with a local IT system designed for the power supply requirements of medical Class 2 places. The IT system is equipped with an insulation monitoring device to monitor the insulation status of the system.
Each output circuit adopts a circuit breaker with short-circuit protection function; other system output circuits use circuit breakers with leakage protection function. Products include GGF-O series for operating rooms and GGF-I series for ICU/CCU, ensuring compliance with IEC60364-10:2002 standards for power safety and reliability.

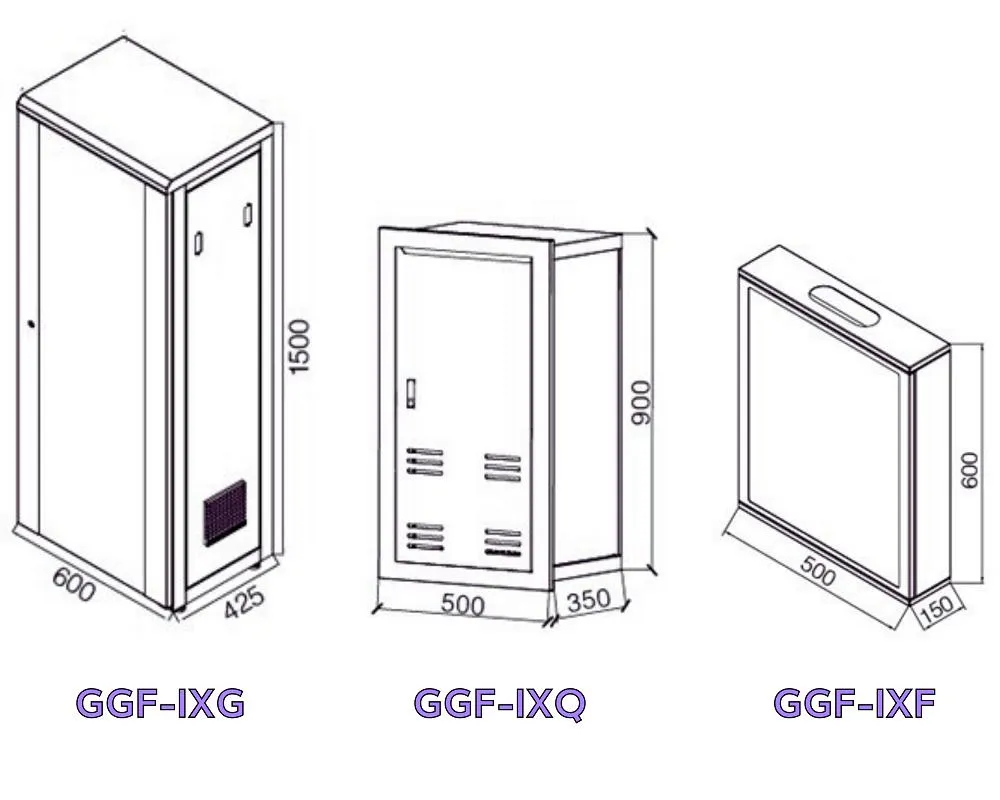

| Parameters | GGF-IXG | GGF-IXQ | GGF-IXF |
|---|---|---|---|
| Rated Voltage | 220V AC | ||
| Rated Capacity | 3.15 / 5 / 6.3 / 10KVA | --- | |
| Rated Frequency | 50/60HZ | ||
| Distribution circuit | IT System: 4 or 5 channels AC220V | ||
| Protection level | IP31 | IP34D | |
| Installation | Grounded | Embedded | |
| Communication | RS485 interface, Modbus-RTU protocol | ||
A high-tech enterprise integrating R&D, production, sales, and service, committed to providing users with energy efficiency management and security system solutions. The product line spans from cloud platform software to precision sensors.
The energy efficiency management system includes substation operations, electricity safety management, industrial energy control, fire-fighting power monitoring, and IT isolation power supply systems. The company holds numerous patents and software copyrights, participating in national and industrial standard formulations.
