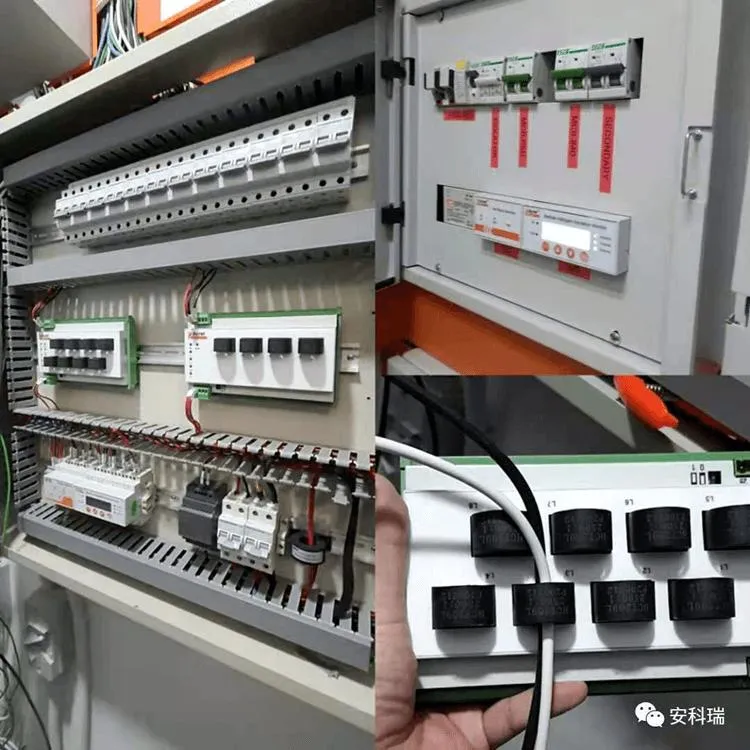

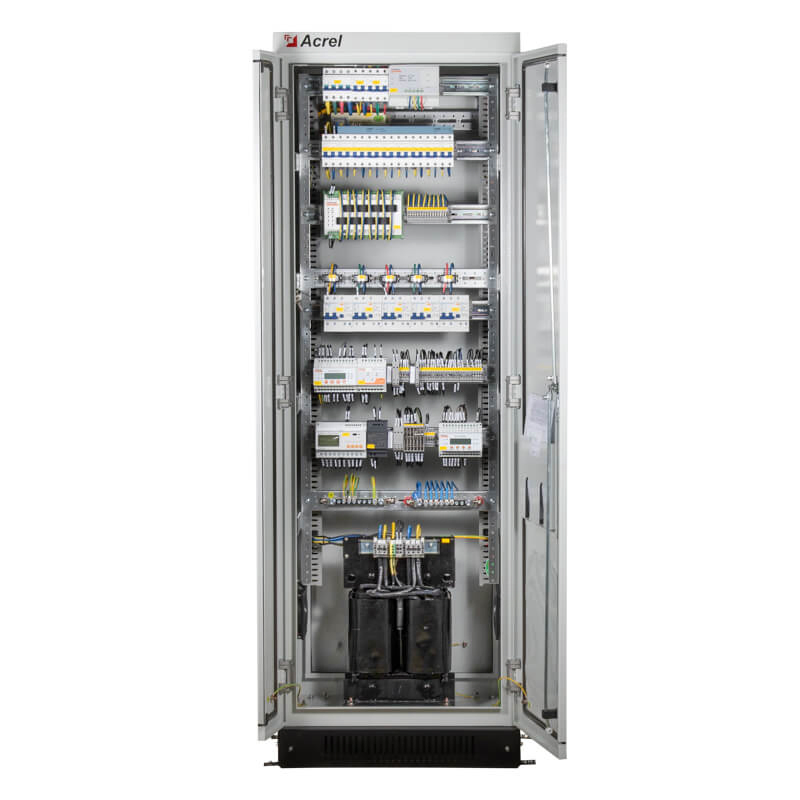

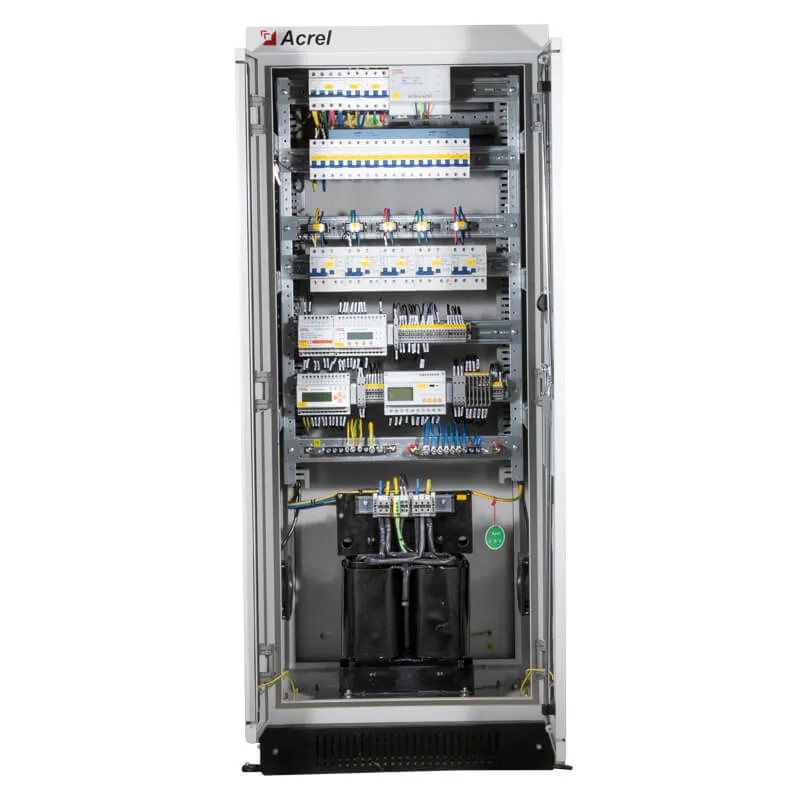

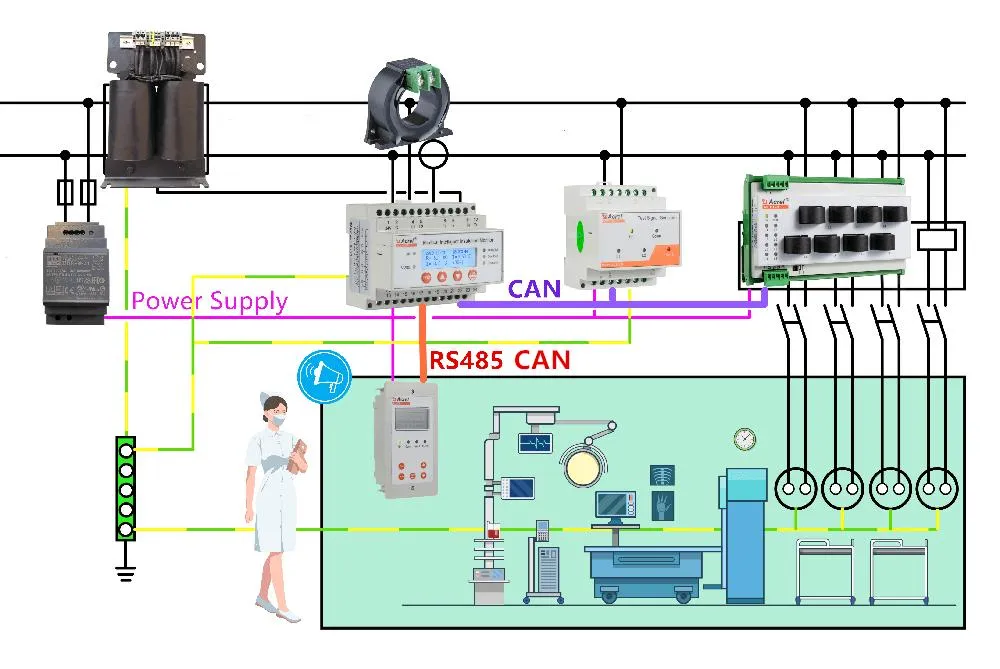

The medical isolation power supply cabinet is a power distribution cabinet with a local IT system designed for the power supply requirements of medical Class 2 places. The IT system is equipped with an insulation monitoring device to monitor the insulation status of the system. Each output circuit adopts a circuit breaker with short-circuit protection; other system output circuits use circuit breakers with leakage protection function.
Products are categorized into: GGF-O series for operating rooms and GGF-I series for ICU/CCU, meeting strict safety requirements and compliance with IEC60364-10:2002 standards.

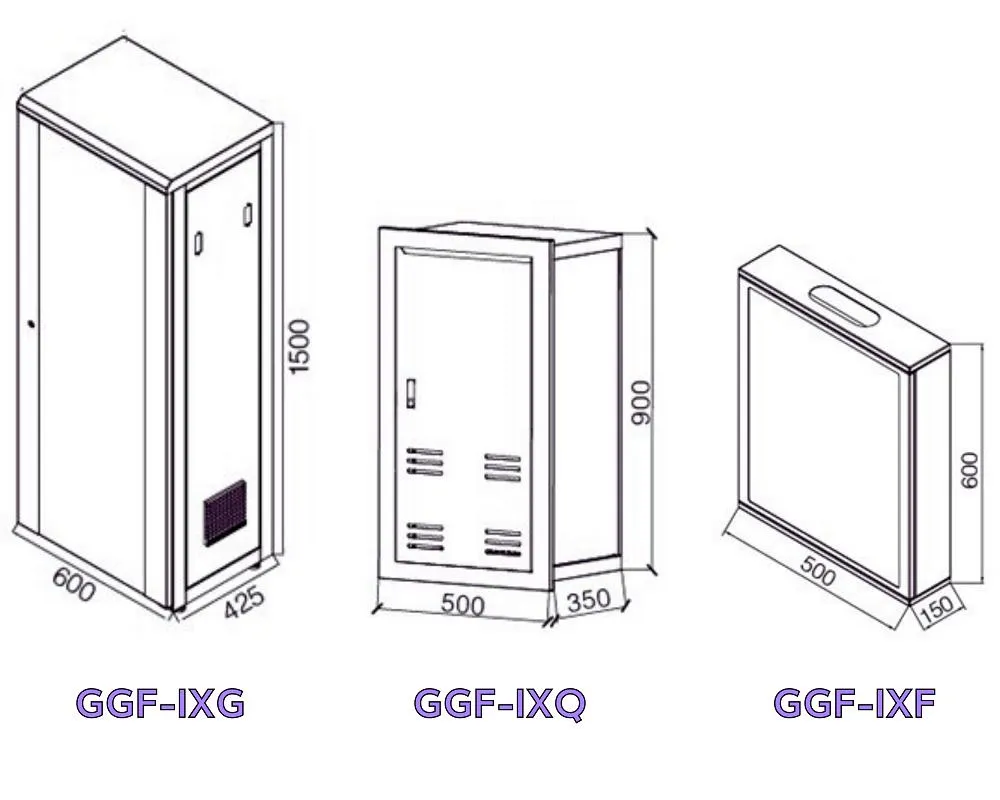

| Parameters | GGF-IXG | GGF-IXQ | GGF-IXF |
|---|---|---|---|
| Rated Voltage | 220V AC | ||
| Rated Capacity | 3.15 / 5 / 6.3 / 10KVA | --- | |
| Rated Frequency | 50/60HZ | ||
| Distribution circuit | IT System: 4 or 5 channels AC220V (customizable) | ||
| Protection level | IP31 | IP34D | |
| Installation | Grounded | Embedded | |
| Communication | RS485 interface, Modbus-RTU protocol | ||

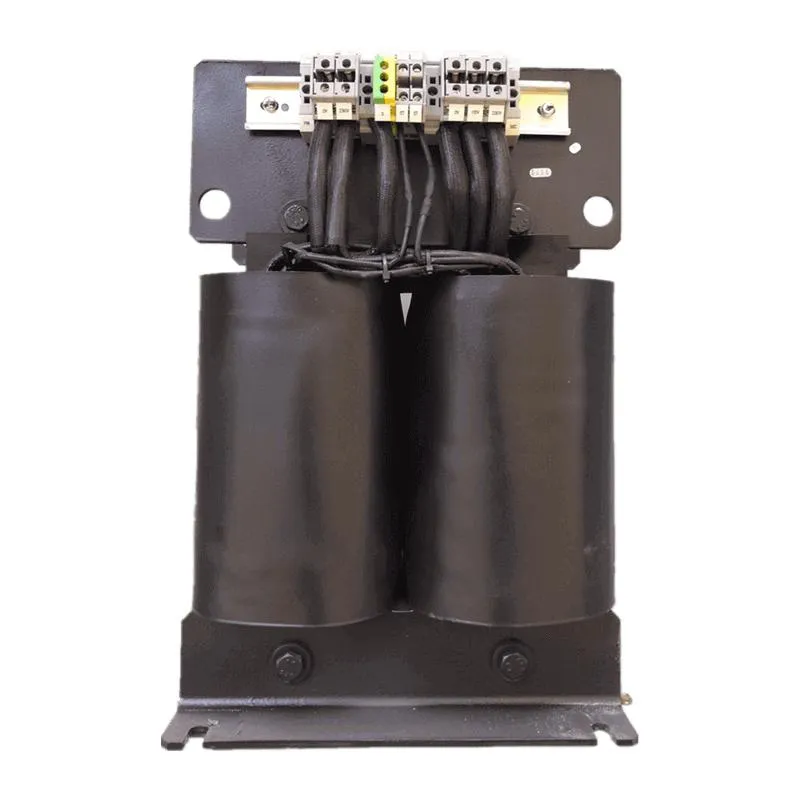

☆ Capacity: 8 KVA | ☆ Noise Level: <40dB | ☆ Insulation Class: H | ☆ Short Circuit Voltage ≤ 3% | ☆ Efficiency >96%
☆ Certificate: CE, IEC | ☆ Communication: RS485 | ☆ Monitoring Ground Insulation, Transformer Load and Temperature

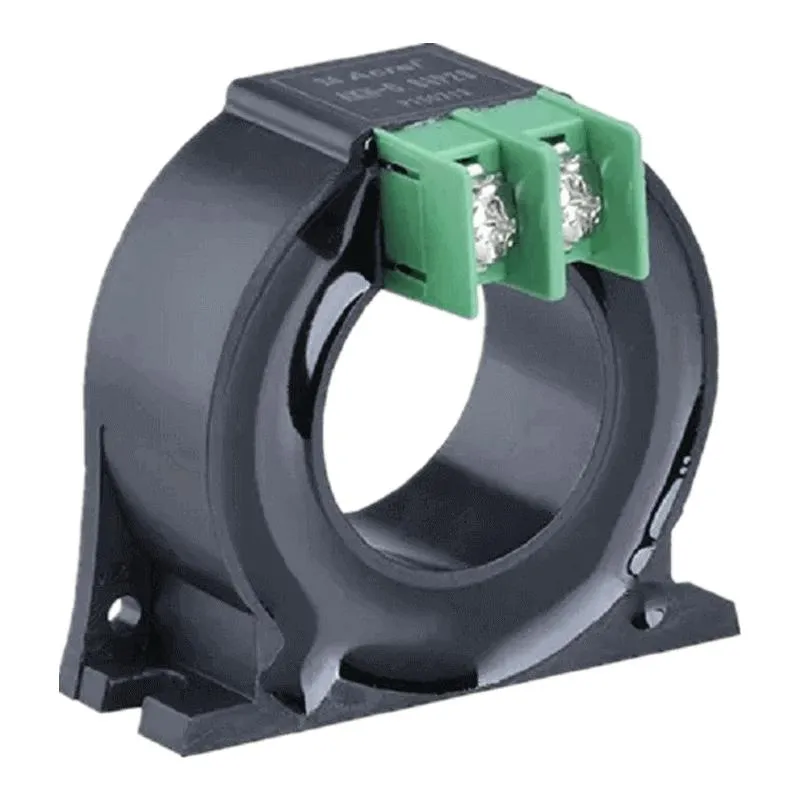

☆ Current Ratio: 2000:1 | ☆ Maximum Measurable Current: 50A | ☆ Accuracy: 0.5% | ☆ Isolation Voltage: 5000Vac

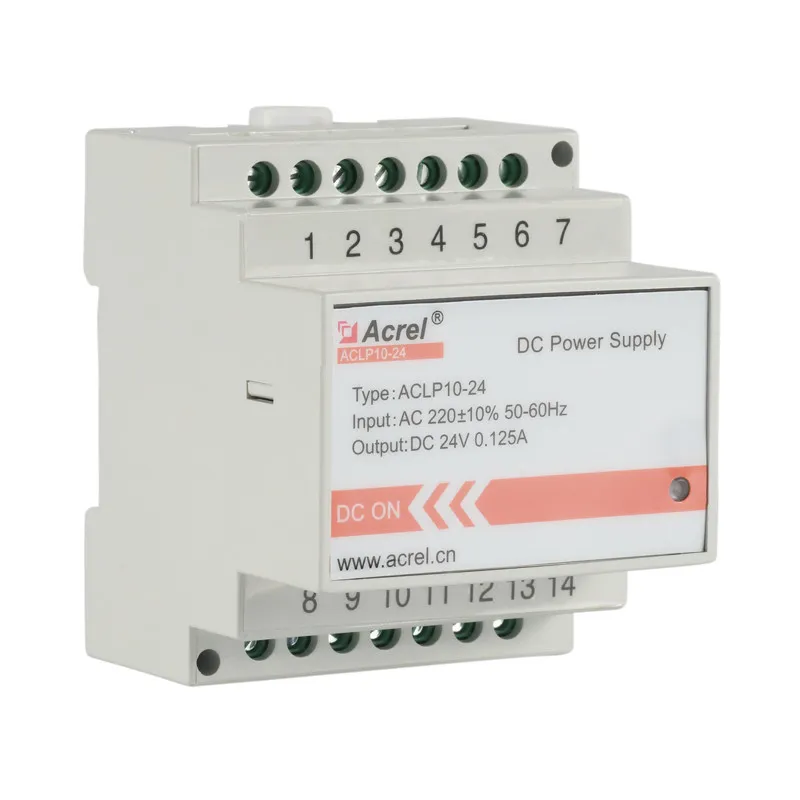

☆ Input: AC220V(±10%) | ☆ Output: DC24V(±5%) | ☆ Power: 3W

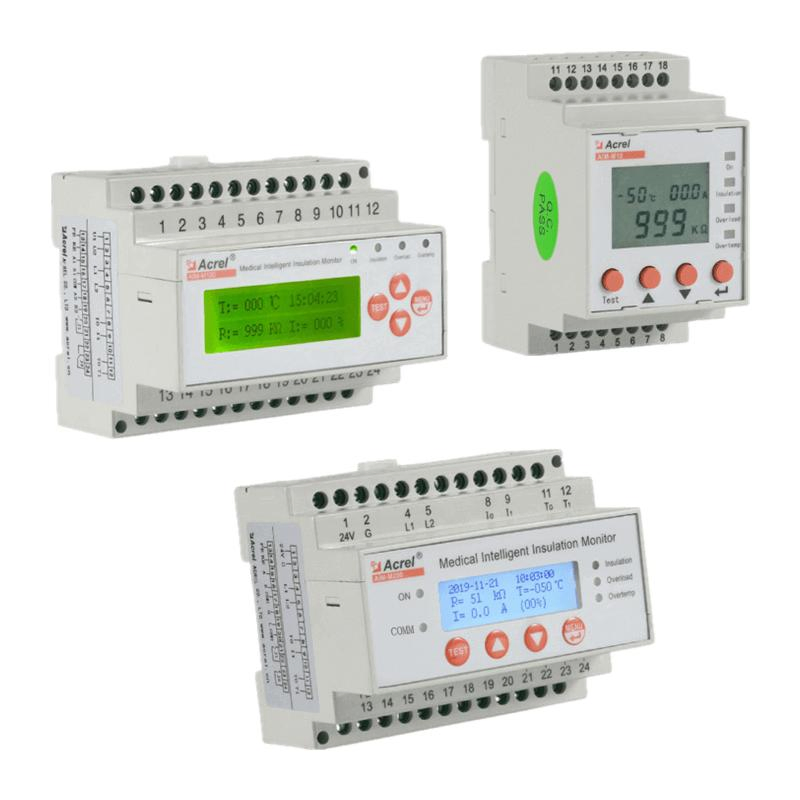

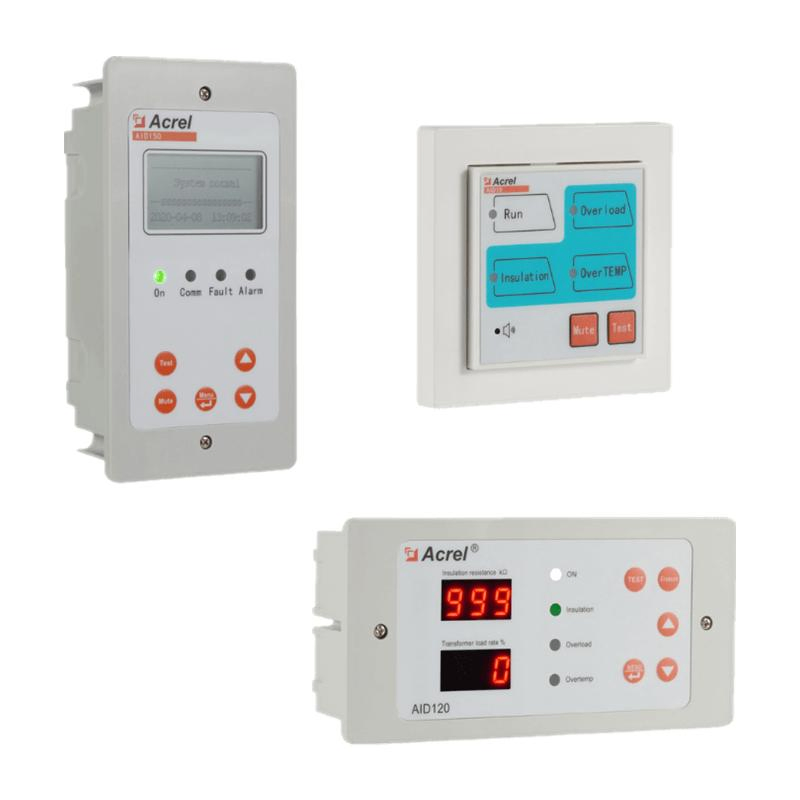

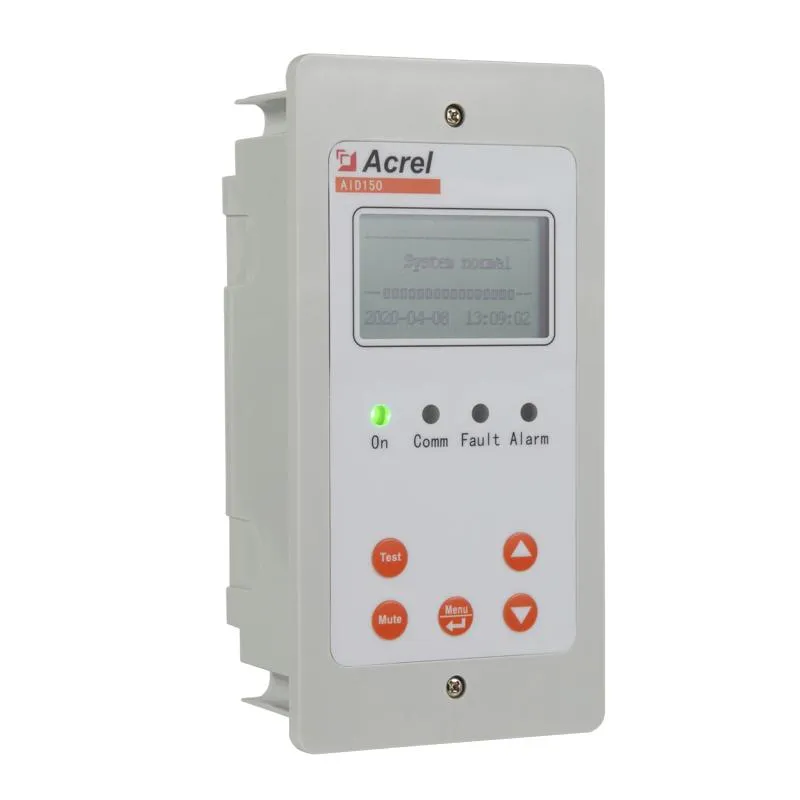

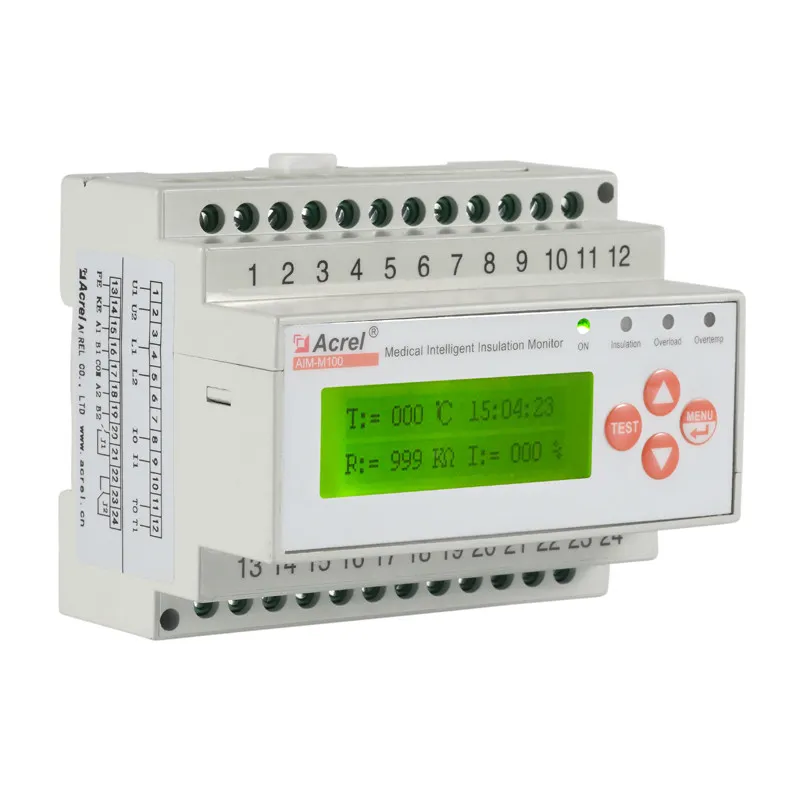

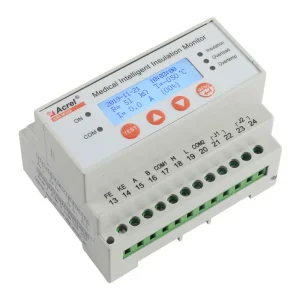

☆ Certificate: CE | ☆ Communication: RS485 | ☆ Display: LCD | ☆ Alarm: Insulation, Overload, Overtemp
Our enterprise integrates R&D, production, sales, and service, committed to providing users with energy efficiency management and powerful security system solutions. We maintain a complete production line ranging from cloud platform software to advanced sensors.
Our solution portfolio includes substation operations and maintenance, electricity safety management, environmental equipment monitoring, intelligent power distribution, and IT isolation power supply systems for medical environments. We hold numerous patents and software copyrights, participating actively in the formulation of industrial standards.
