Product Description

📊 Basic Information

Model

AIM-M200

Installation

Dinrail

Housing

Fibre Glass

Voltage

DC24V

Interface

RS485 / CAN

Protocol

Modbus-RTU

Standard

IEC61326-2-4

HS Code

9030849000

📝 Product Description

The medical intelligent insulation monitoring instrument adopts advanced microcontroller technology, featuring high integration, compact size, and convenient installation. It integrates intelligence, digitalization, and networking into one device. It is an ideal selection for insulation monitoring of isolated power systems in Class 2 medical locations such as operating rooms and intensive care units (ICU).

🖼️ Product Panel Display

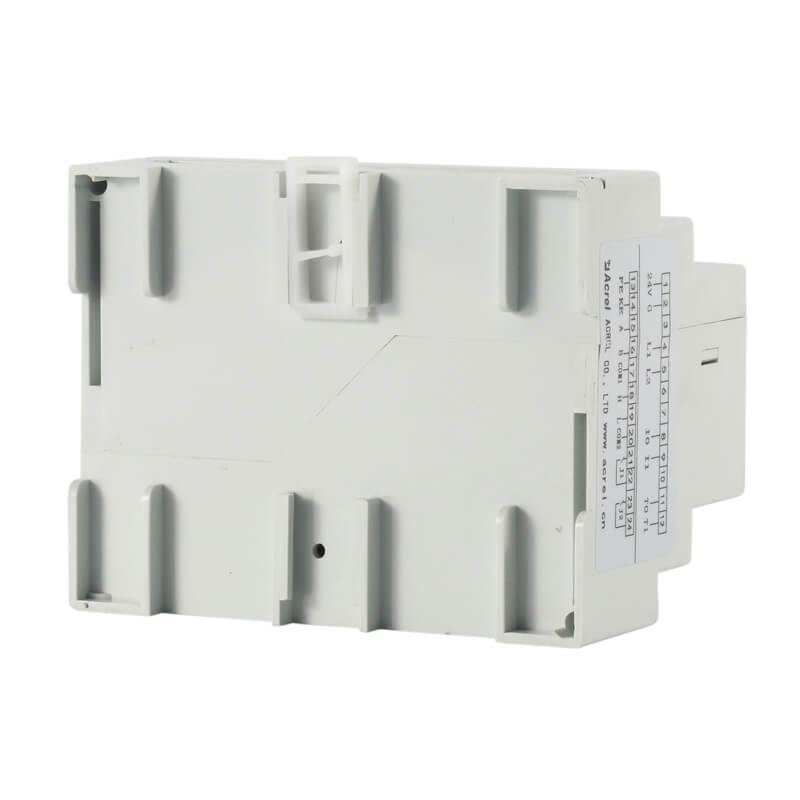

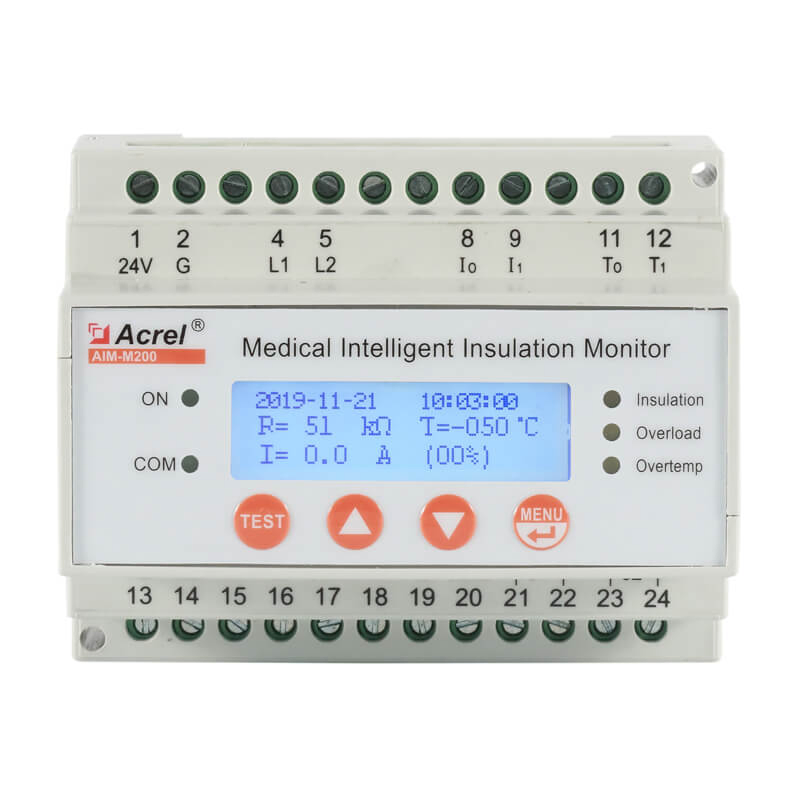

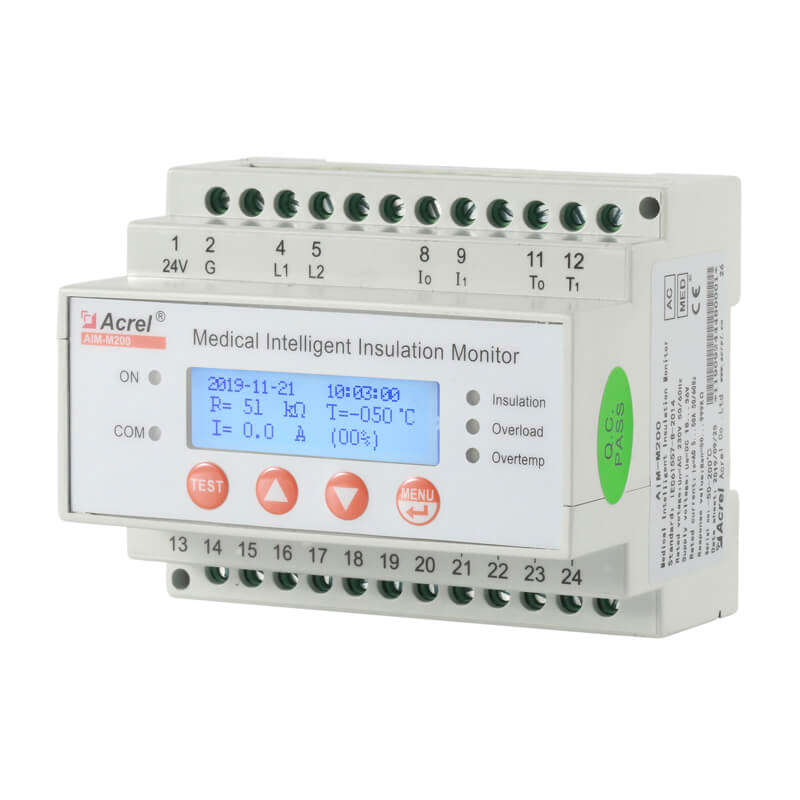

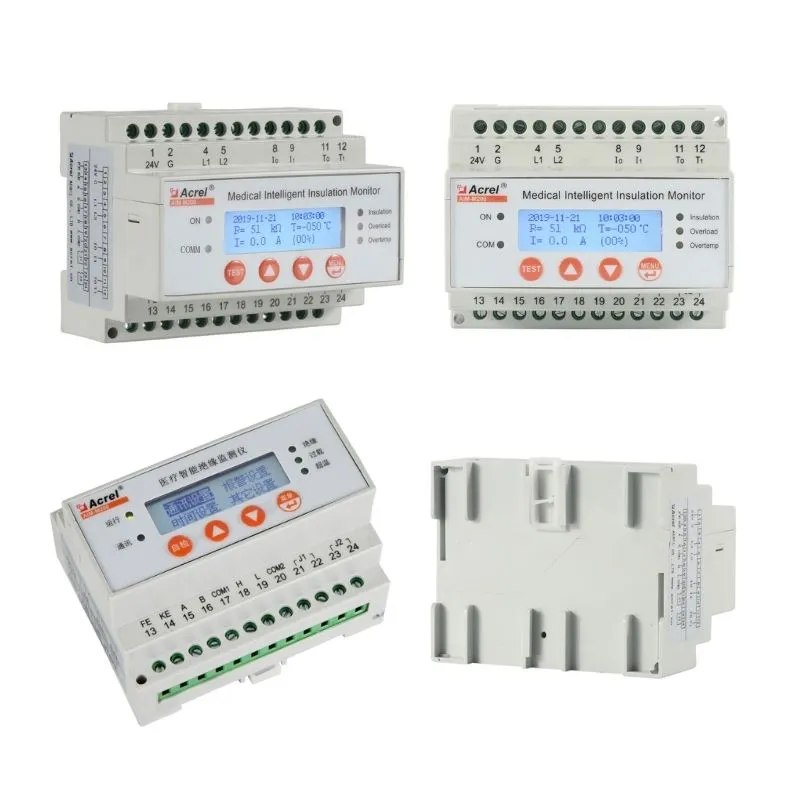

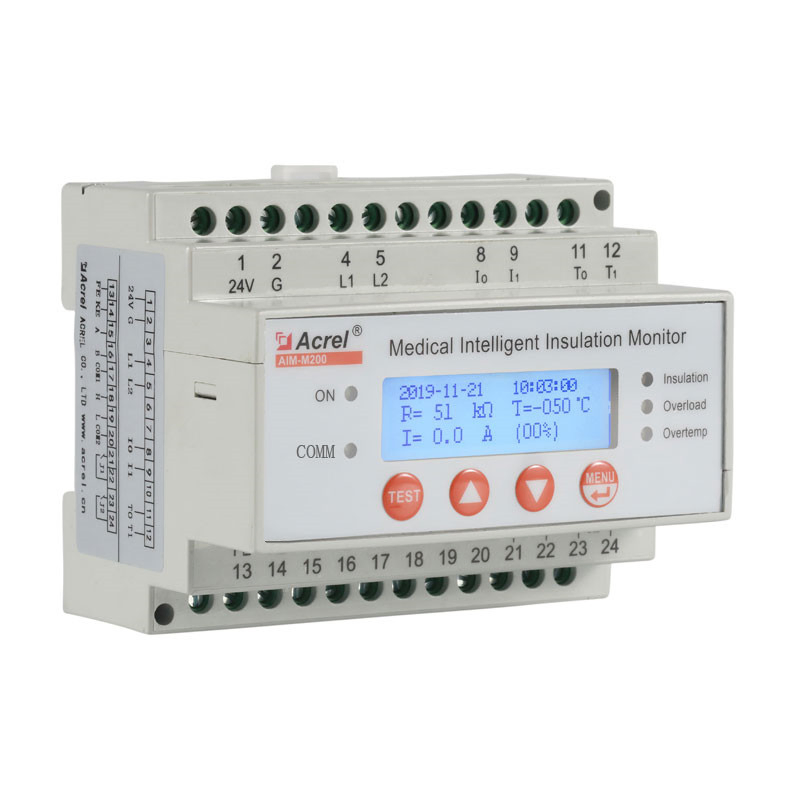

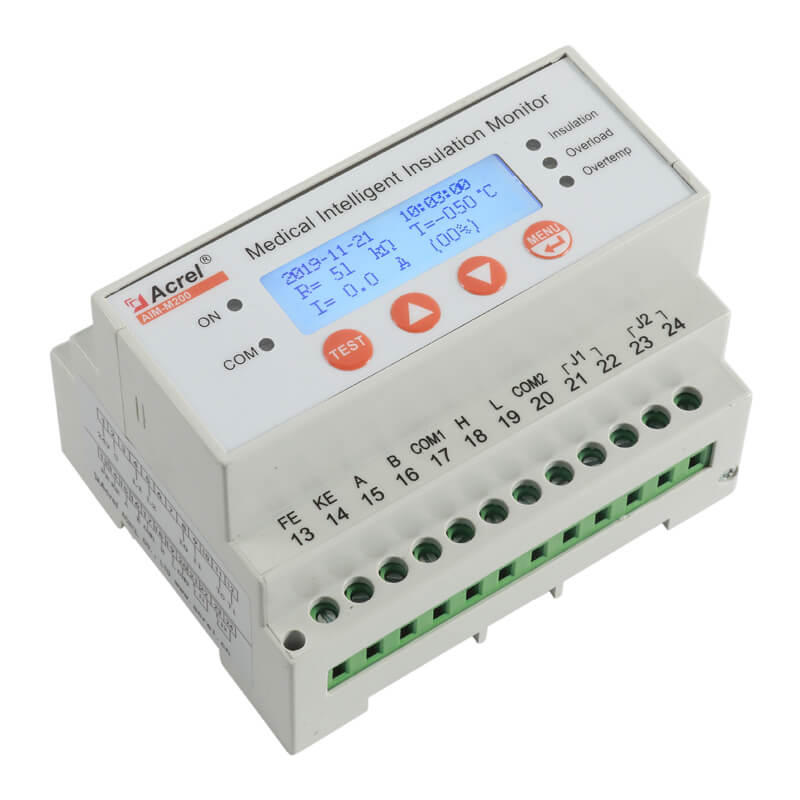

AIM-M200

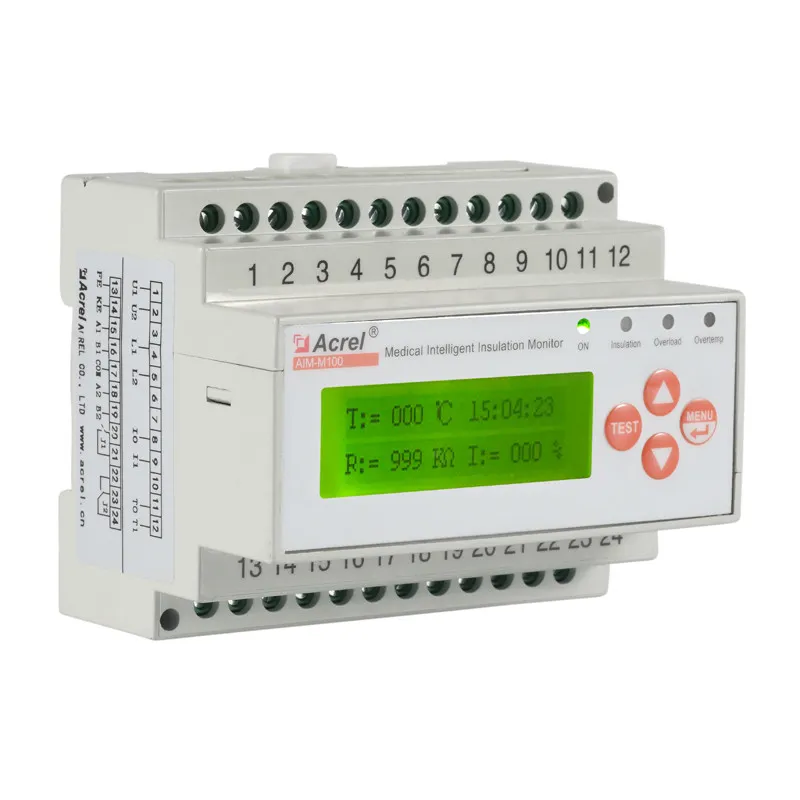

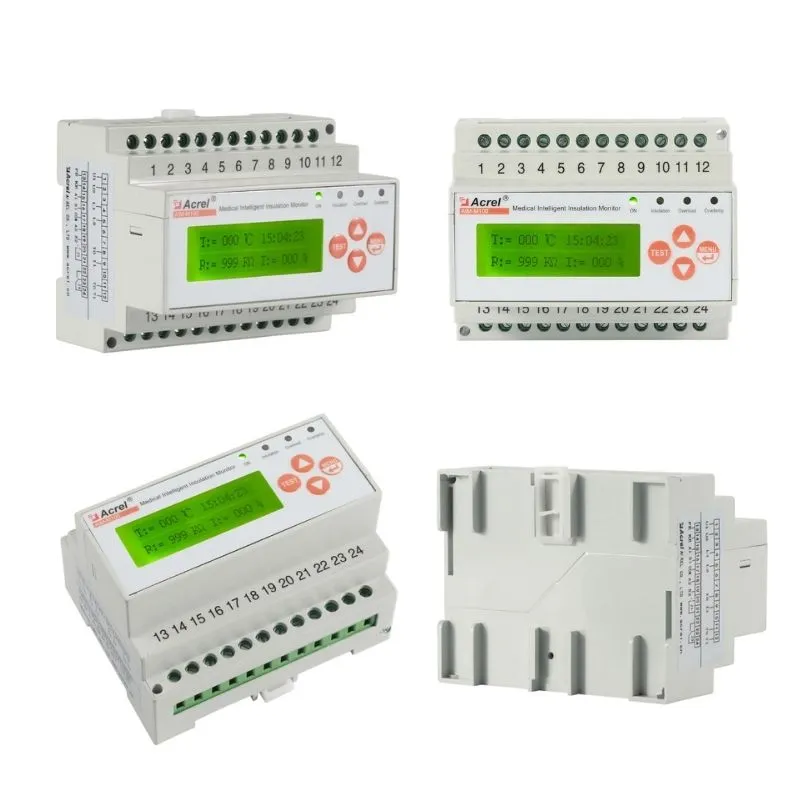

AIM-M100

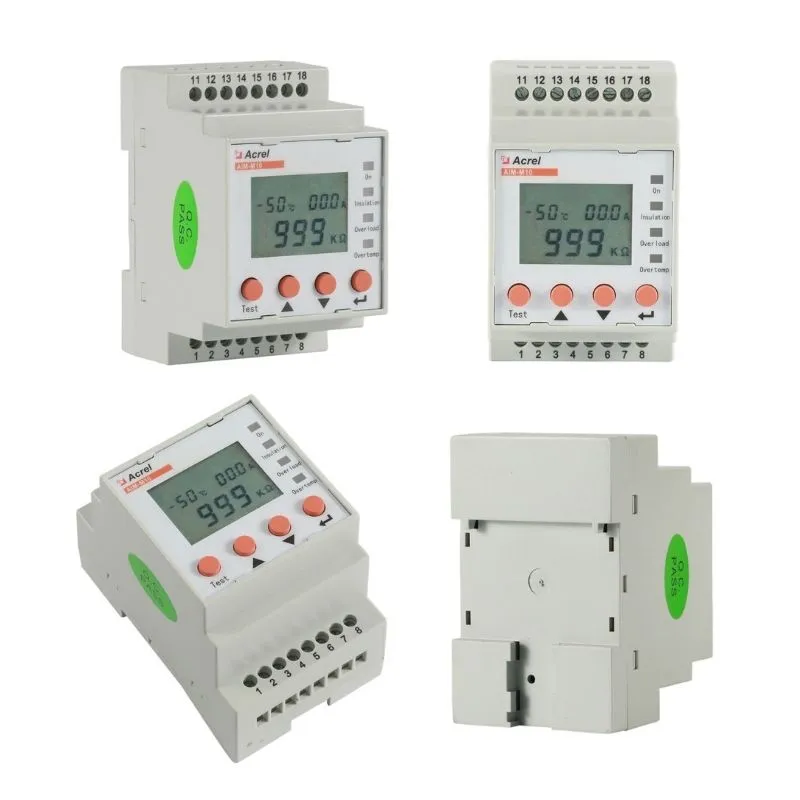

AIM-M10

⚙️ Product Parameters

Parameter	Item	AIM-M200	AIM-M100	AIM-M10
Communication	Interface	1 RS485, 1 CAN	2 RS485	1 RS485
Communication	Protocol	Modbus-RTU	Modbus-RTU	Modbus-RTU
Power	Voltage	DC24V(±25%)	AC220V(±10%)	AC220V(±10%)
Power	Consumption	<3VA	<8VA	<8VA
Insulation	Range	10~999KΩ	10~999KΩ	50~999KΩ
	Alarm Range	50~999KΩ	50~999KΩ	10~999KΩ
	Response Time	<2s	<2s	<2s
Temperature	Sensor	PT100	PT100	PT100
Environment	Op. Temp	-10ºC~+55ºC	-10ºC~+55ºC	-10ºC~+55ºC

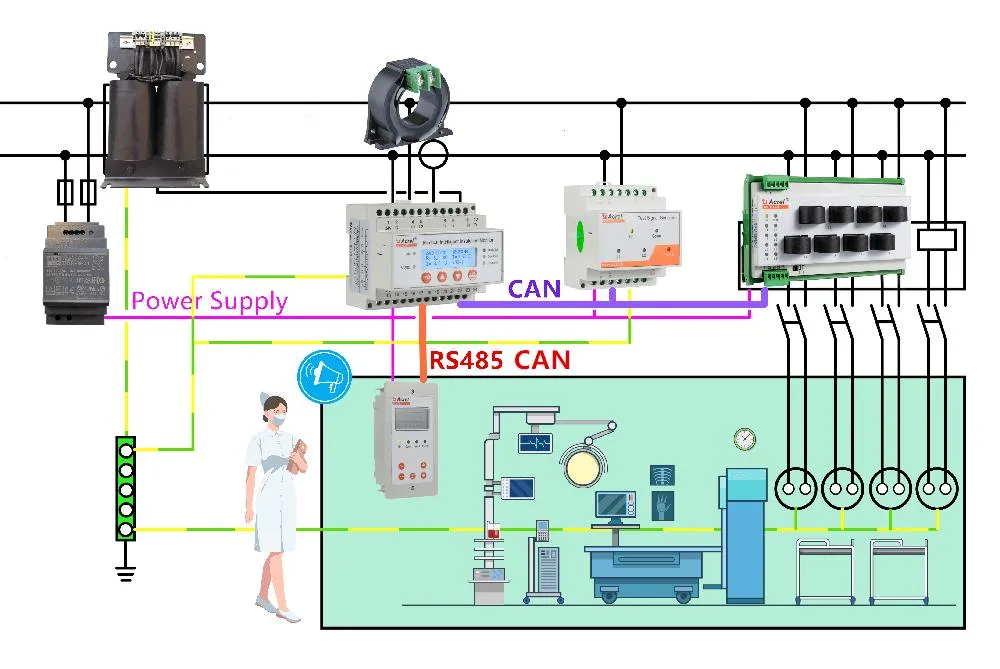

🌐 Networking Diagram

🔗 Related System Components

AIM-M100 Line Isolation Monitor

Certificate: CE, IEC | Communication: RS485 | Monitors Ground Insulation, Transformer Load and Temperature.

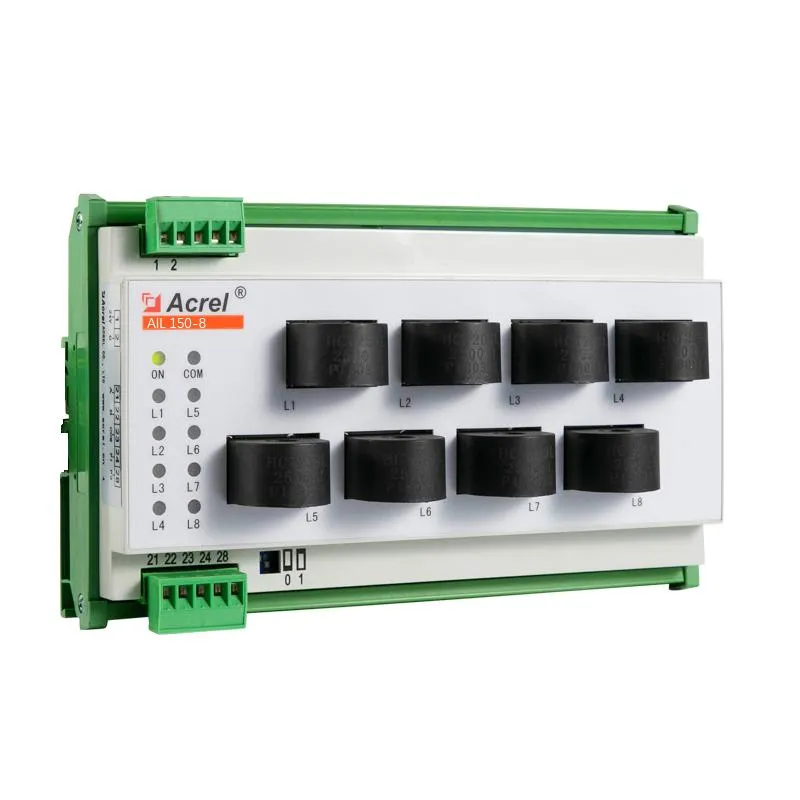

AIL150 Ground-fault Location Kit

Communication: CAN | DC 24V | Locates 4 or 8 circuits in AC IT systems with response time <2s.

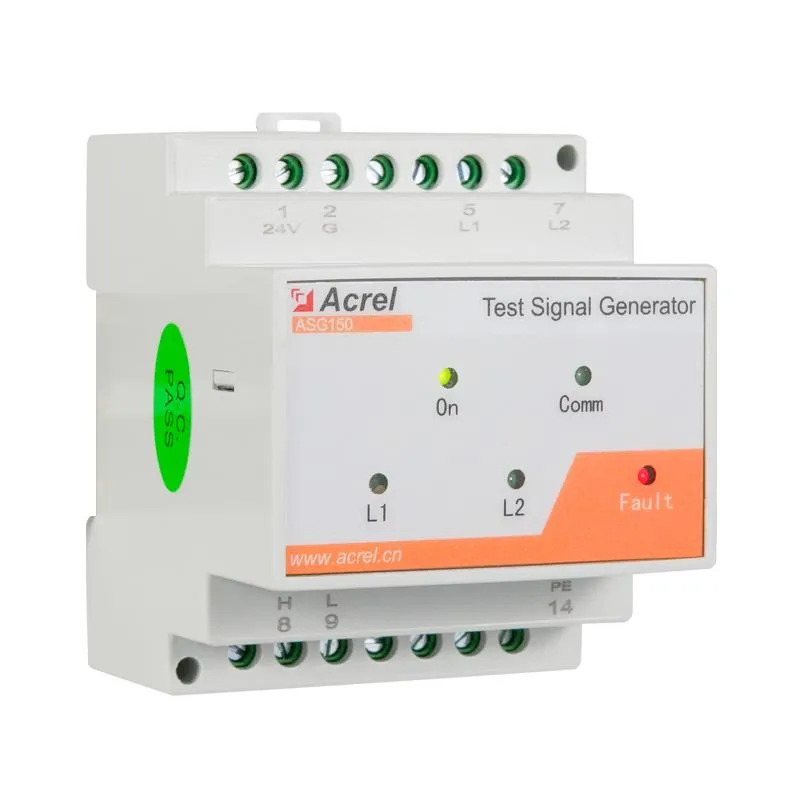

ASG150 Signal Generator

32-bit Microprocessor | High-precision Signal | Communication: CAN | DC 24V.

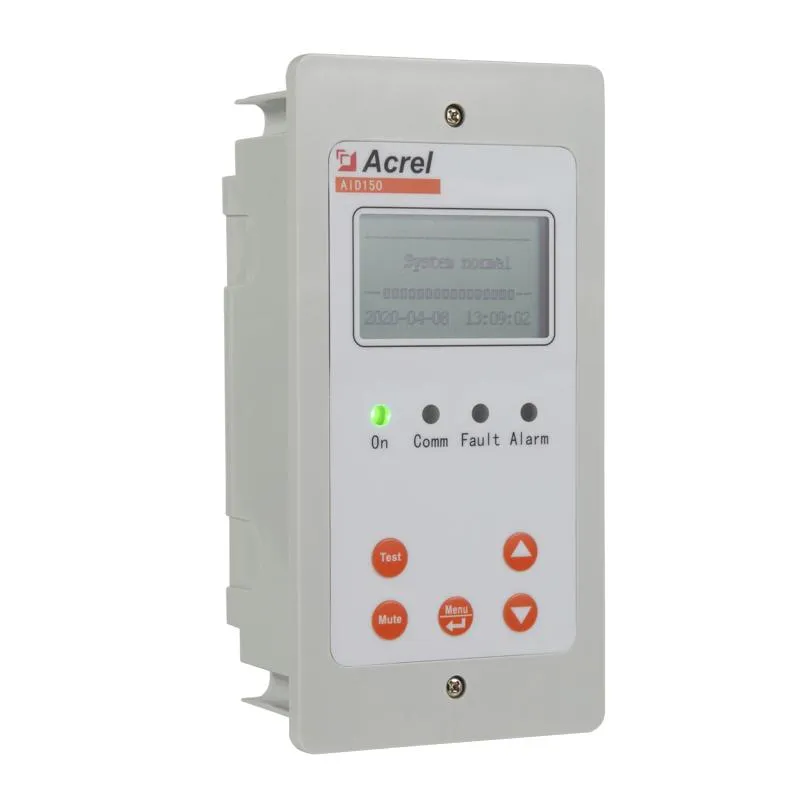

AID150 Remote Annunciator

LCD Display | RS485 Communication | Alarms for Insulation, Overload, and Overtemp.

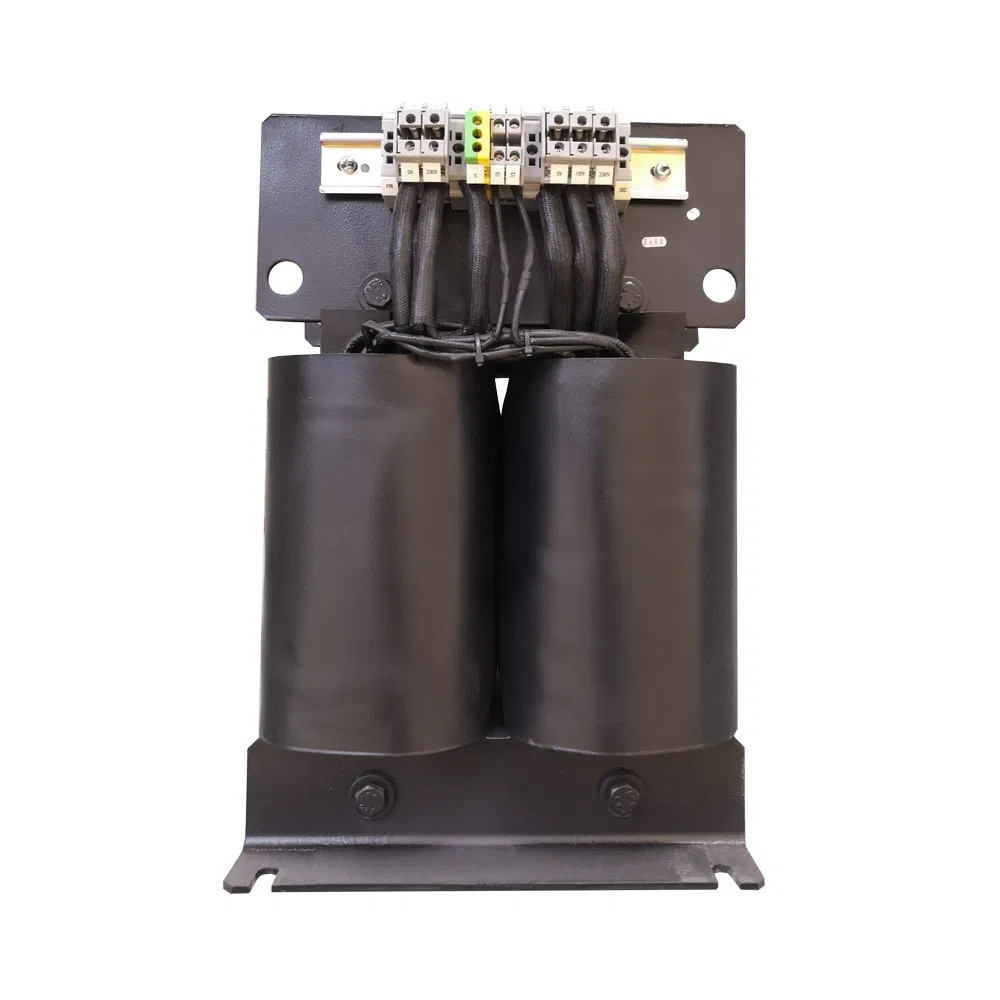

Hospital Grade Isolation Transformers

Capacity: 8 KVA | Noise: <40dB | Efficiency >96% | Insulation Class: H.

🏢 Enterprise Profile

The enterprise is a high-tech manufacturer that integrates R&D, production, sales, and service. It is committed to providing users with energy efficiency management and powerful security system solutions. The production line covers everything from cloud platform software to sensors, including substation operations, electricity safety management, and IT isolation power supply systems.

The company attaches great importance to product quality and innovation, holding numerous invention patents, utility model patents, and software copyrights, while participating in the formulation of national industrial standards.

❓ Frequently Asked Questions

Q1: What are the primary applications for the AIM series insulation monitors? A: They are designed for Class 2 medical locations, specifically for insulation monitoring in isolated power systems within operating rooms and intensive care units (ICU).

Q2: Which communication protocols do these devices support? A: The devices primarily support Modbus-RTU via RS485. The AIM-M200 model also includes a CAN interface.

Q3: What is the measurement range for insulation resistance? A: The measurement range is typically 10~999KΩ for the AIM-M200 and AIM-M100 models, and 50~999KΩ for the AIM-M10 model.

Q4: Does the system provide temperature monitoring? A: Yes, the units support temperature monitoring using PT100 thermistors with a range from -50ºC to +200ºC.

Q5: What are the response times for insulation measurement? A: All models in the series offer a rapid response time of less than 2 seconds for insulation resistance monitoring.

Q6: Are there auxiliary devices for remote monitoring? A: Yes, the AID150 Remote Annunciator can be integrated to provide a centralized LCD display for insulation, overload, and over-temperature alarms.
