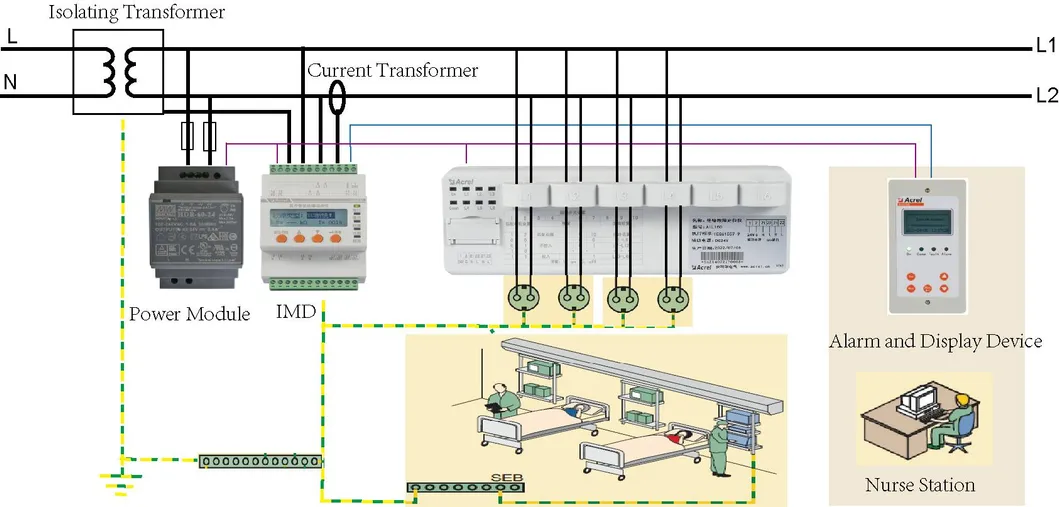

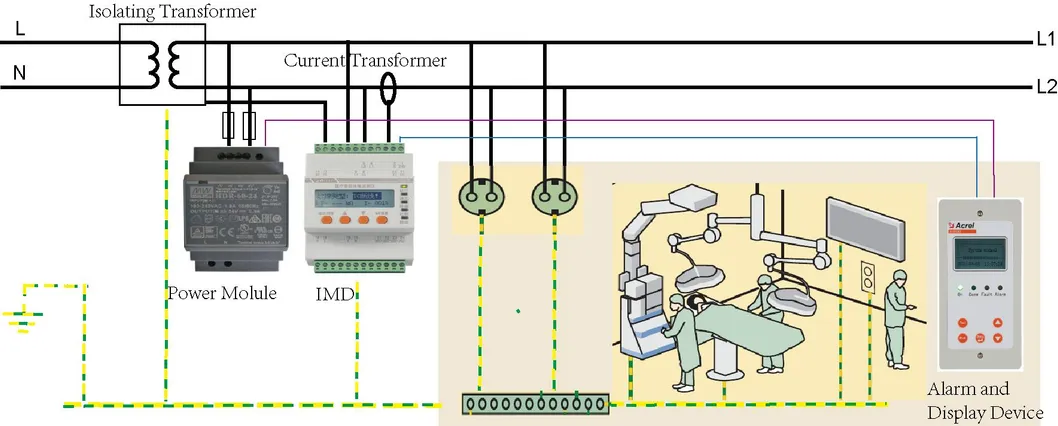

The medical IT system is mainly used in important Class 2 medical locations such as operating room, ICU/CCU intensive care unit, providing safe, reliable and continuous power distribution for important equipment.
Medical insulation monitoring and fault locating devices are developed according to special requirements of Class 2 medical locations. They realize real-time monitoring of insulation, load, and temperature of isolation transformers in IT systems. These products support system insulation fault loop positioning and centralized monitoring.

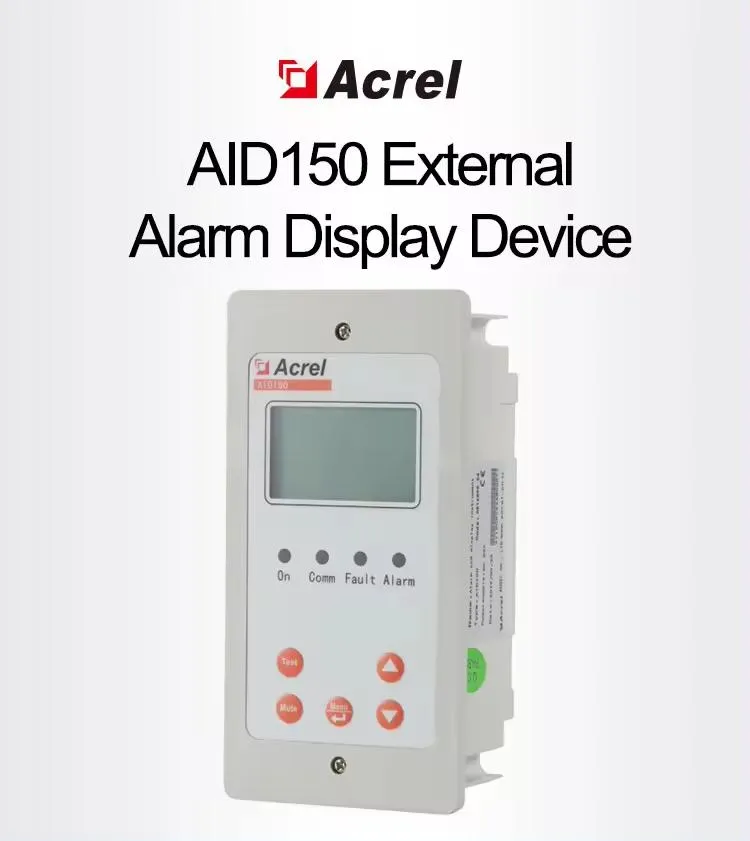

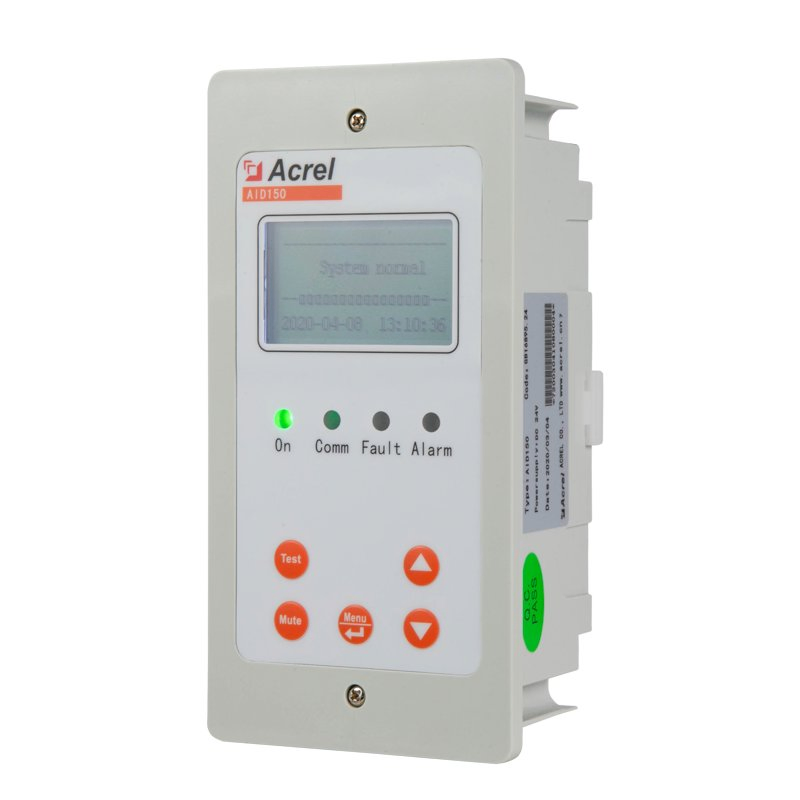

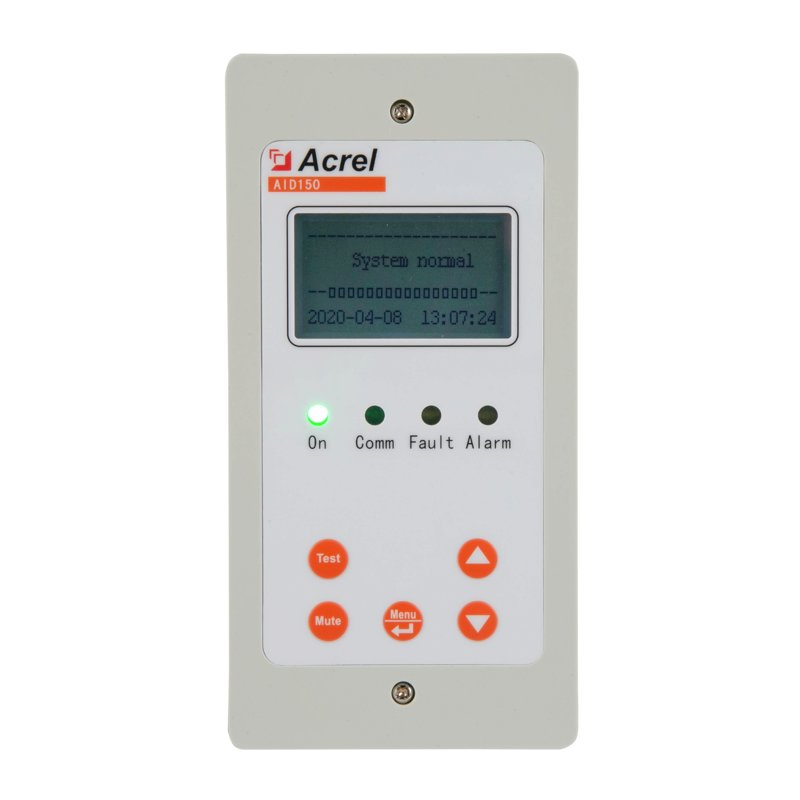

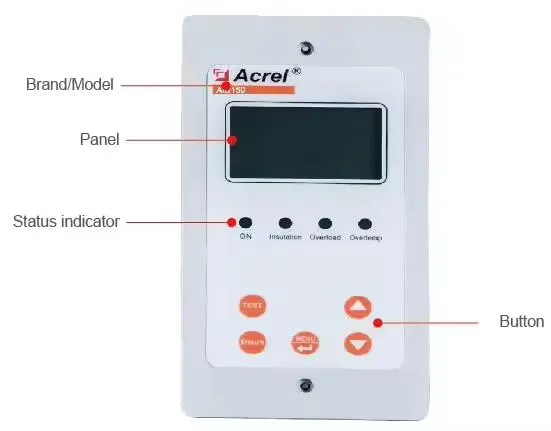

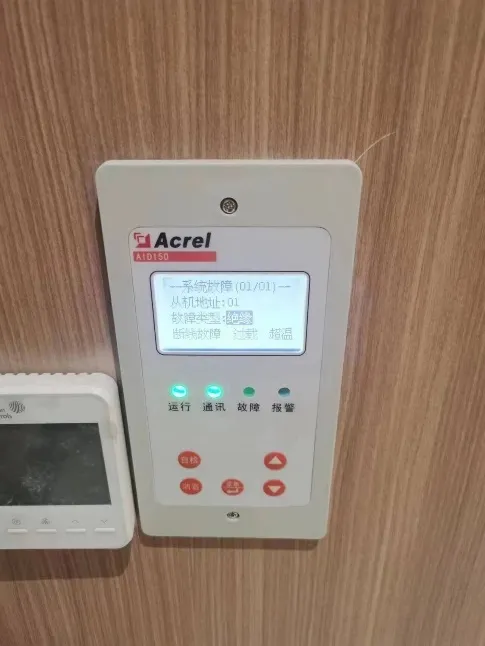

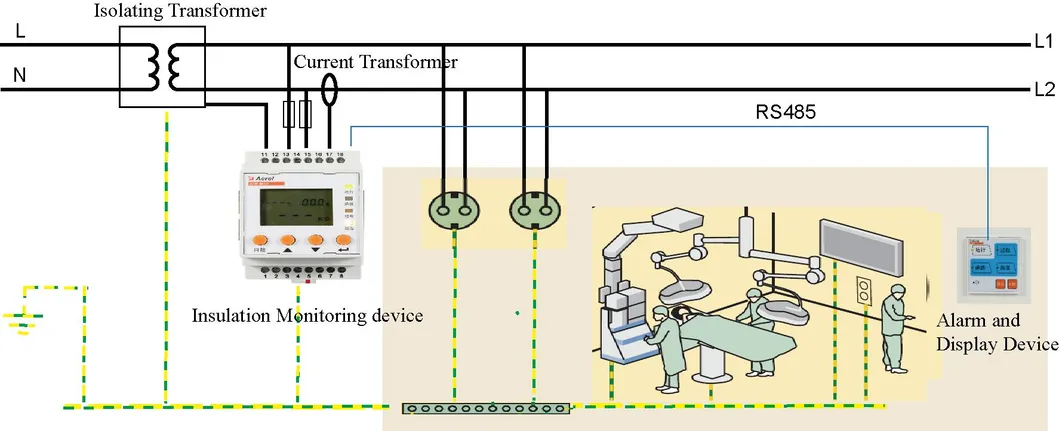

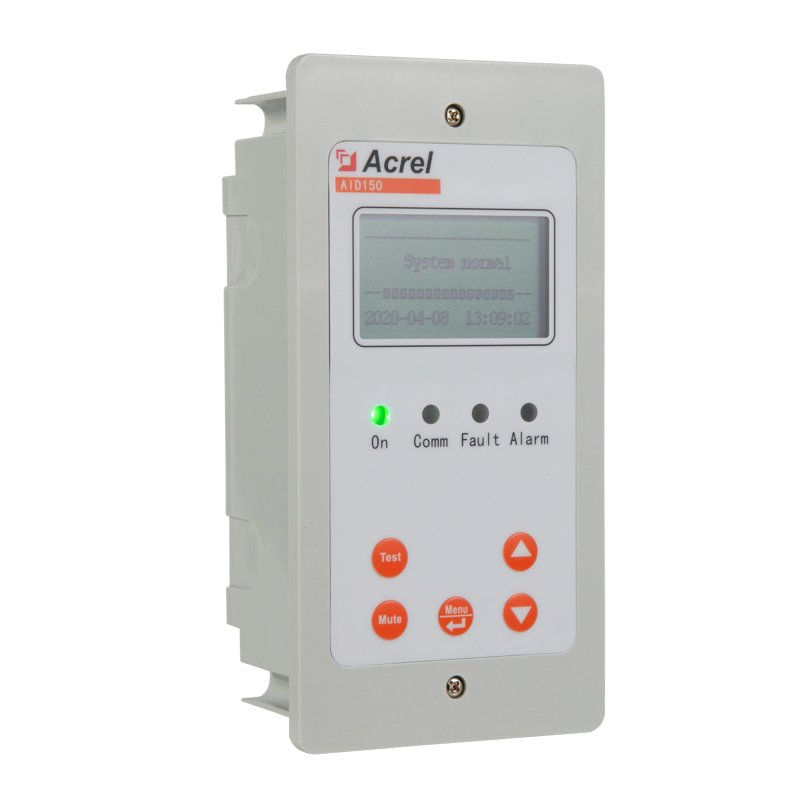

The AID150 centralized alarm and display instrument adopts an LCD liquid crystal display. It achieves data exchange with the medical intelligent insulation monitoring instrument through the RS485 communication interface, enabling real-time multi-channel data monitoring.
Q1: What is the primary function of the AID150 instrument?
The AID150 is a centralized alarm and display instrument designed to monitor multi-channel data from medical intelligent insulation monitoring instruments in real-time, specifically for medical IT systems.
Q2: Which medical locations require this monitoring system?
It is primarily used in Class 2 medical locations such as Operating Rooms, ICU (Intensive Care Units), and CCU (Critical Care Units) to ensure continuous and safe power distribution.
Q3: How fast does the system respond to insulation faults?
The response time for the insulation monitoring system is no more than 5 seconds, ensuring rapid detection of potential electrical issues.
Q4: What parameters can the AID150 display?
It can monitor and display the insulation status, load levels, and temperature of the isolation transformer within the medical IT system.
Q5: What communication protocol does the device use?

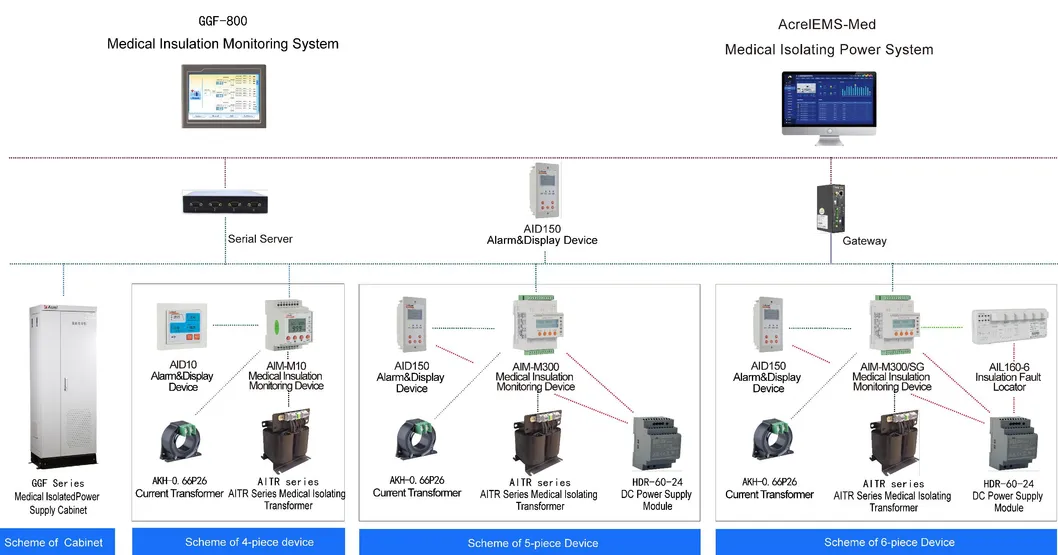

The AID150 uses RS485 communication to achieve stable data exchange with monitoring instruments like the AIM-M200.
Q6: Is the device compliant with international EMC standards?
Yes, the device conforms to the IEC 61326-2-4 standards for electromagnetic compatibility.
